NHTSA ID Number: 10161747
Manufacturer Communication Number: TJ3453210-2019-0
Summary
This is a Technical Journal: Gurgling sound from sunroof area, while driving in the rain
1 Affected Product
Vehicle
MAKE | MODEL | YEAR |
VOLVO | XC40 | 2019 |
DESCRIPTION:
Gurgling sound from sunroof area, while driving in the rain, see attached mp4-file, noise is coming from the sunroof /A-pillar area while driving in the rain. The noise is louder when the sunshade is open.
please follow the description under “service”.
SERVICE:
In certain conditions, wind turbulence may prevent the water from drain properly. Extend the sunroof front drain hoses by following the attached method.
SEOCONTENT-START
VOLVO CAR
SERVICE AND PARTS BUSINESS
Technical Journal
TITLE:
Gurgling sound from sunroof area, while driving in the rain
REF NO:
TJ 34532.1.0
ISSUING DEPARTMENT:
Technical Service
CAR MARKET:
United States and Canada
PARTNER:
3 US 7510 Volvo Car USA
ISSUE DATE:
2019-04-29
STATUS DATE:
2019-05-03
FUNC GROUP:
8369
FUNC DESC:
Miscellaneous Page 1 of 7
Produced in the USA and available as an electronic document. Hard copy documents are printed in USA on recycled paper containing a minimum of 50% wastepaper and 10% post-consumer waste.
© 2019 VOLVO CAR USA, LLC
“Right first time in Time”
Attachment
File Name File Size
TJ 34532 Gurgling noise Audio.mp3 0.4733 MB
TJI-516846-1_1_0_en-US.pdf 1.1511 MB
Vehicle Type
Type Eng Eng
Desc Sales Body Gear Steer Model Year Plant Chassis range Struc Week
Range
536 2019-9999 0000329-9999999 201746-999952
CSC Customer Symptom Codes
Code Description
ZB Sun/moon/convertible roof/Wind noise
VST Operation Number
VST Operation Number Description
98728-2 Sunroof drainage hose extention acc. to TJ34532
DTC Diagnostic Trouble Codes
Text
Page 2 of 7 2019-05-03
Technical Journal 34532.1.0
DESCRIPTION:
Gurgling sound from sunroof area, while driving in the rain, see attached mp4-file, noise is coming from the sunroof /A-pillar area while driving in the rain. The noise is louder when the sunshade is open.
please follow the description under “service”.
SERVICE:
In certain conditions, wind turbulence may prevent the water from drain properly.
Extend the sunroof front drain hoses by following the attached method.
VEHICLE REPORT:
Yes, please submit a Vehicle Report if the service solution described in this TJ has no effect. Use concern area “Vehicle Report” and sub concern area “Support not needed”, use function group 8369.
To view TJ attachment continue to next page. This TJ has one attachment and one sound file.
Volvo Car Customer Service TJ Instruction VCC-516846-1
Title Sunroof draining hose Page 1 ( 5 )
Action Adjustment Operation number: 98728-2
Issue Date Reason
1 2019-04 First issue
Affected vehicles
Model year Model
2019 XC40
Materials
Materials Qty. Part No. Notes
Hose 1.0 31371480
TJ Instruction VCC-516846-1 Page 2 ( 5 )
Color symbols
Note! This colour chart displays (in colour print and electronic version) the importance of the different colours used in the images of the method steps.
1 . Used for focused component, the component with which you will do something.
2 . Used as extra colors when you need to show or differentiate additional parts.
3 . Used for attachments that are to be removed/installed. May be screws, clips, connectors, etc.
4 . Used when the component is not fully removed from the vehicle but only hung to the side.
5 . Used for standard tools and special tools.
6 . Used as background color for vehicle components.
Note! Orientation view
TJ Instruction VCC-516846-1 Page 3 ( 5 )
Cut
Removal
Remove the plenum cover , refer to:
Removal, replacement and installation
8 – Body and interior
82 – Bonnet (Hood), front end, wings,
door sill
823 – radiator grille
Remove the wiper mechanism, windscreen , refer to: Removal, replacement and installation
3 – Electrical system
36 – Other electrical equipment
363 – cleaner
Remove woofer, front , refer to:
Removal, replacement and installation
3 – Electrical system
39 – Media, communication and
navigation
395 – radio equipment
TJ Instruction VCC-516846-1 Page 4 ( 5 )
Installation
Left-hand side
Left-hand side
Left-hand side
TJ Instruction VCC-516846-1 Page 5 ( 5 )
Right-hand side
Right-hand side
Right-hand side
To install, reverse the removal procedure.
SEOCONTENT-END
REF NO:
TJ 34532.1.0
STATUS DATE:
2019-05-03
https://www.nhtsa.gov/recalls?nhtsaId=10161747
https://static.nhtsa.gov/odi/tsbs/2019/MC-10161747-9999.pdf
- Reinforced acrylic in dark smoke color; Outside Mount Visor(not In-Channel)
- Reduce wind, noise and keeping rain out, letting fresh air in and reduce heat buildup in parked vehicles when partially open
- 100% color fade resistant guarantee; Easy no-drill application; Better improved design: sunroof type 2 included
- Installation with included approved tape; Just clean and apply; Pictures show for reference only
- Custom fit for your vehicle; This part is guaranteed to fit: Volvo S60 2001-2011
- [Vehicle Fitment]: Compatible with Volvo XC60 2010-2017 Sport Utility

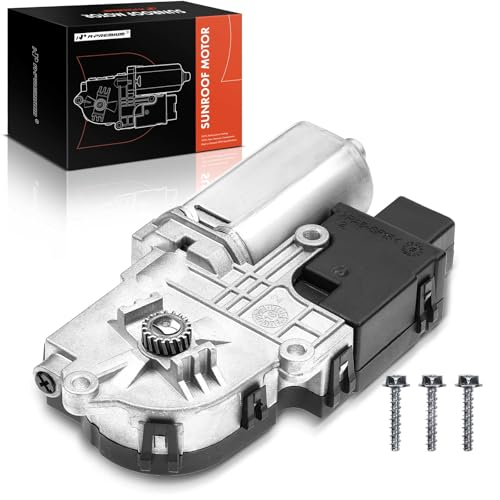

- [Specifications]: ① Position: Left or Right; ② Terminal Quantity: 10 Pins; ③ Attachment Type: Screw-in; ④ Electric/Manual: Electric; ⑤ Material: Metal and Plastic; ⑥ Installation Hardware: with 3 Screws; ⑦ Fitment: Direct Replacement
